📊 React Native WebView Benchmark

This repo benchmarks load time performance of react-native-webview across webview versions 13.13.5 and 13.14.1.

Why this Benchmark?

WebView is widely used in React Native apps to render web content, but its performance can vary across versions and platforms. Understanding these differences helps developers make informed upgrade decisions.

Benchmarking Metrics 📊

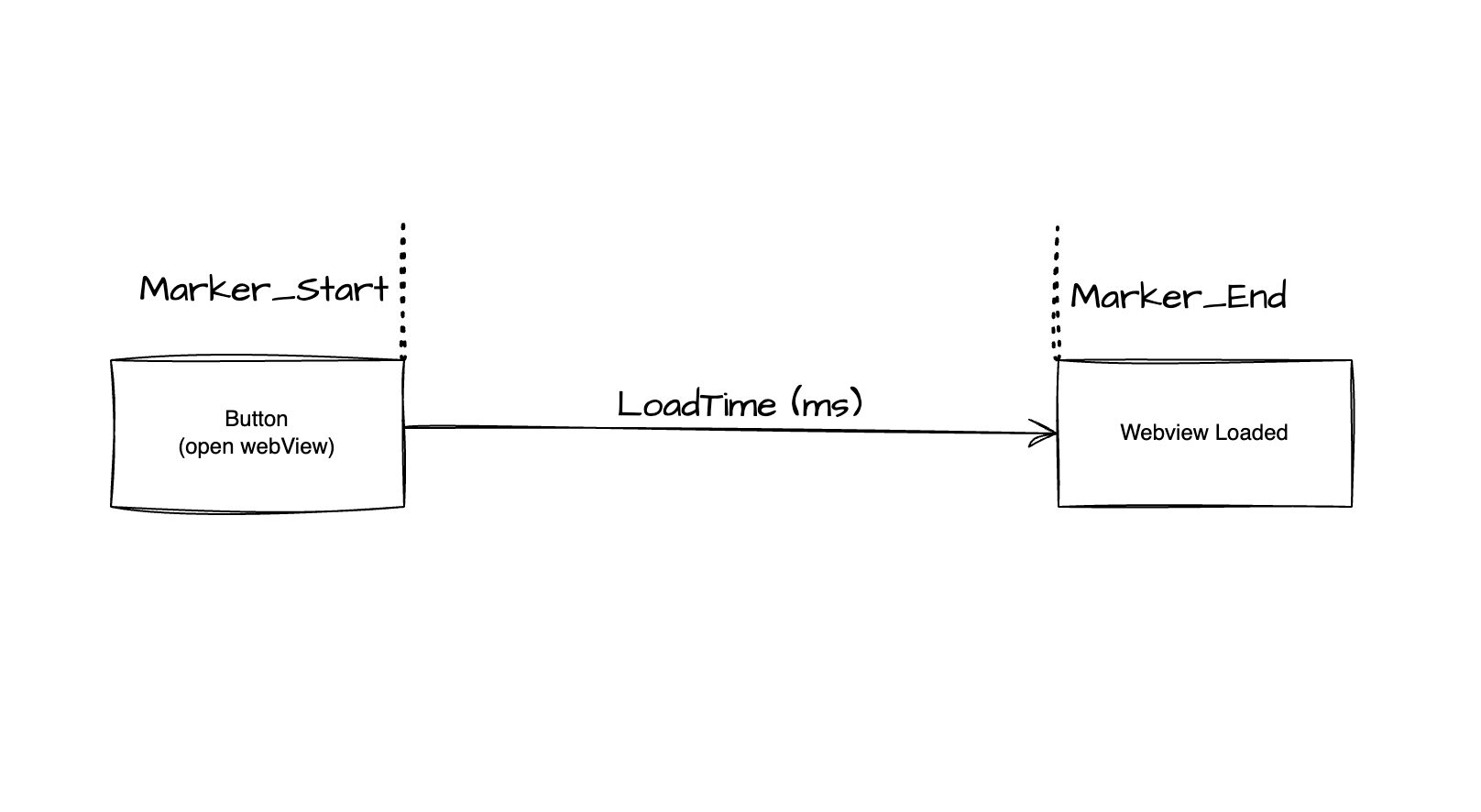

• Load Time: Load time measured from marker_start on button press to marker_end on WebView load finish.

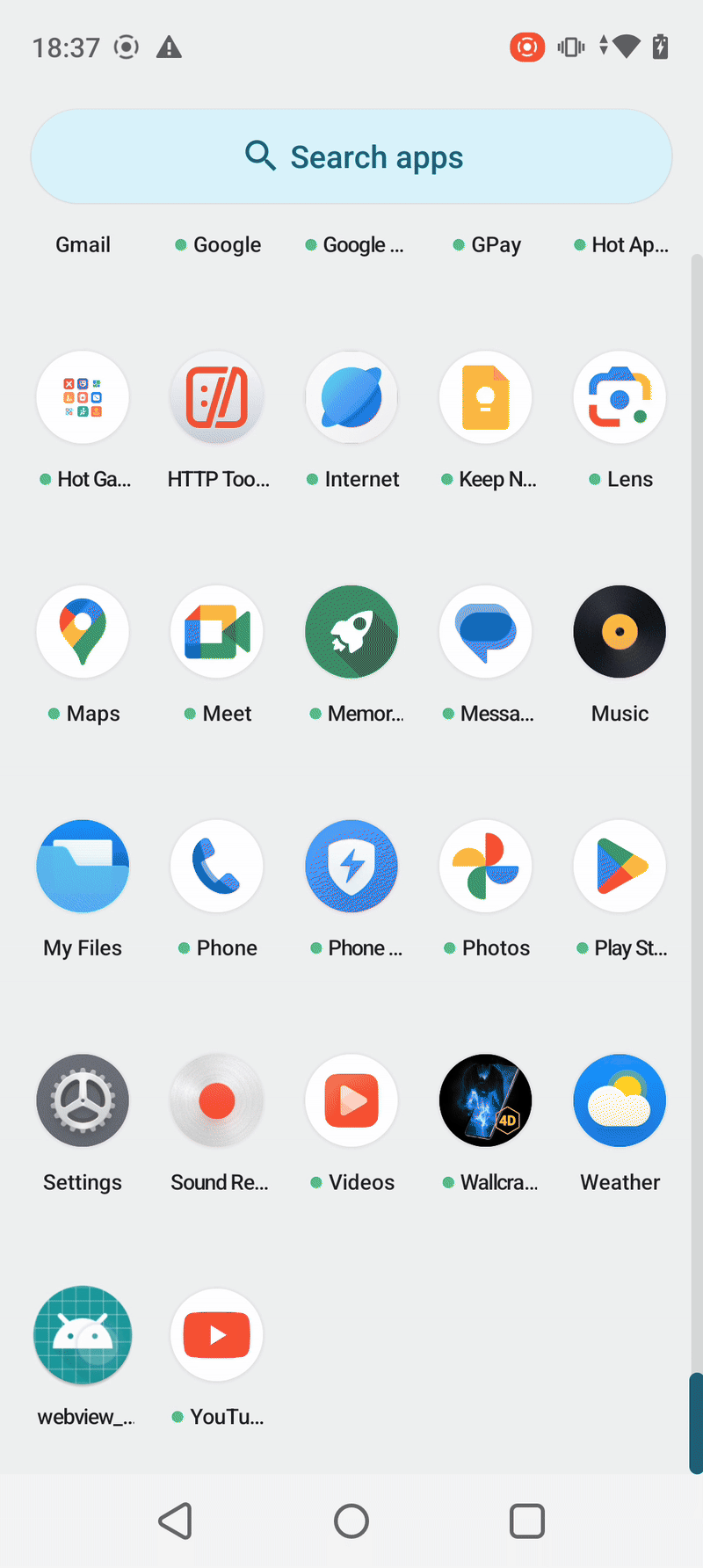

• App Demo



Summary of Results

• Android average load time: ~233 ms
• iOS average load time: ~116 ms

About the Benchmarking Process 📝

We are using the Marco tool to mark events and CLI tools provided by Marco to visualize the results.

📱 Device Details

These benchmarks were conducted on: ### 🤖 Android (Real Device) - **Device:** Realme C35 (Low-end) - **OS:** Android 13 - **RAM:** 4 GB ### 🍏 iOS (Simulator) - **Device:** iPhone 16 Pro - **OS Version:** iOS 18.3

Load Time ⌛

1. Capture the Initial Event:
   • The event is triggered when a button is clicked on app.tsx. (refer)
   • The timestamp is extracted from the Button.onPress event object.
   • The timestamp and a marker name are passed to the native module PerformanceTracker.track() to log the start time.
2. Track webview rendering:
   • The load time completes when the initial webview content is fully painted and visible.
   • We wrapped the webview with the PerformanceTracker API from the Marco library.
   • This accurately captures the onDraw event, indicating when the screen is fully rendered.
   • Code reference

Results

WebView Load Time Comparison

| Platform | Device Type | v 13.13.5 | v 13.14.1 | | ——– | ———– |————–|————–| | Android | Real Device | 145.4 ms | 154.1 ms | | Android | Emulator | 241.5 ms | 242.7 ms | | iOS | Simulator | 122.0 ms | 109.5 ms |

🔗 Live Benchmark Results: Click here

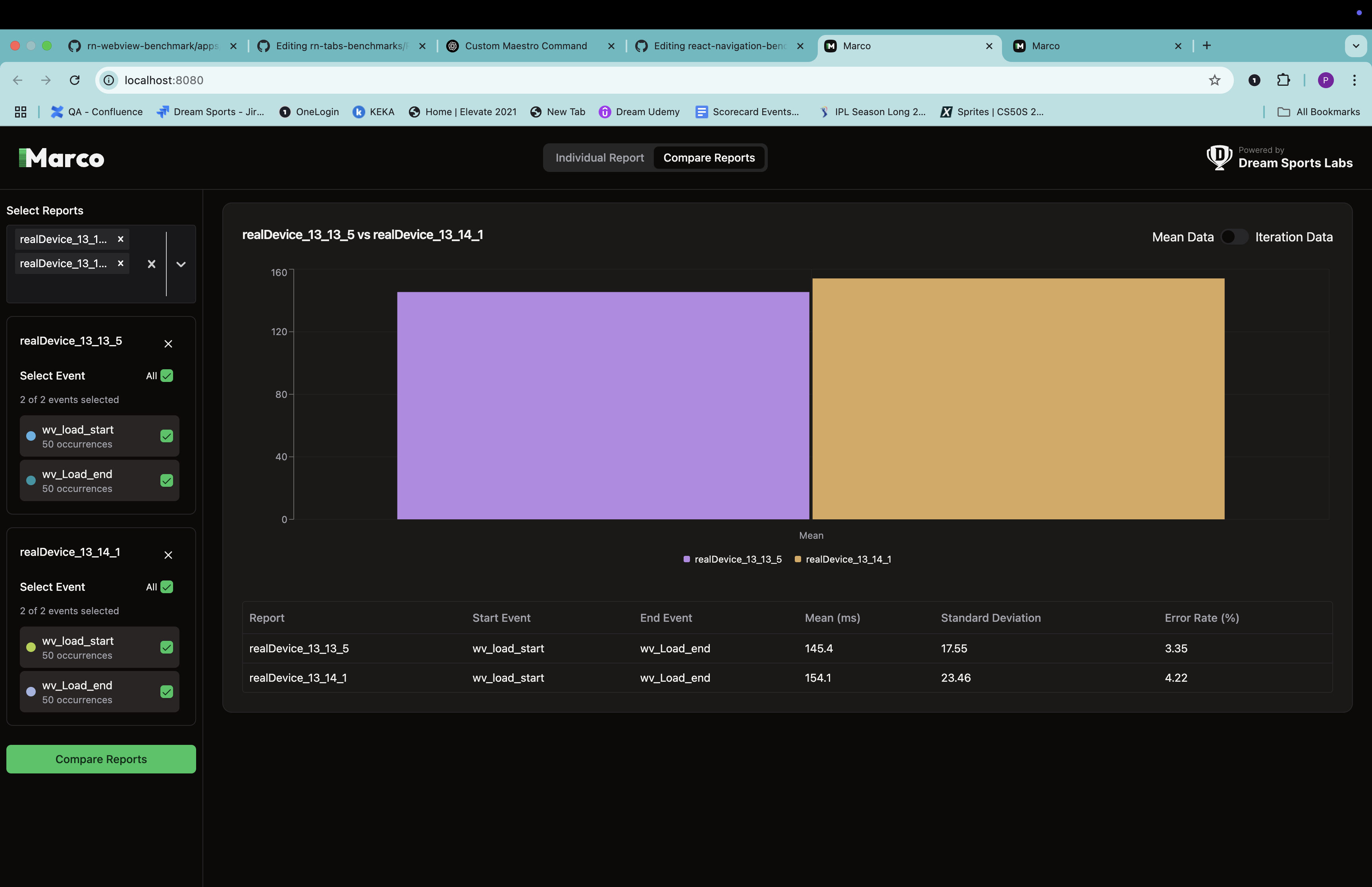

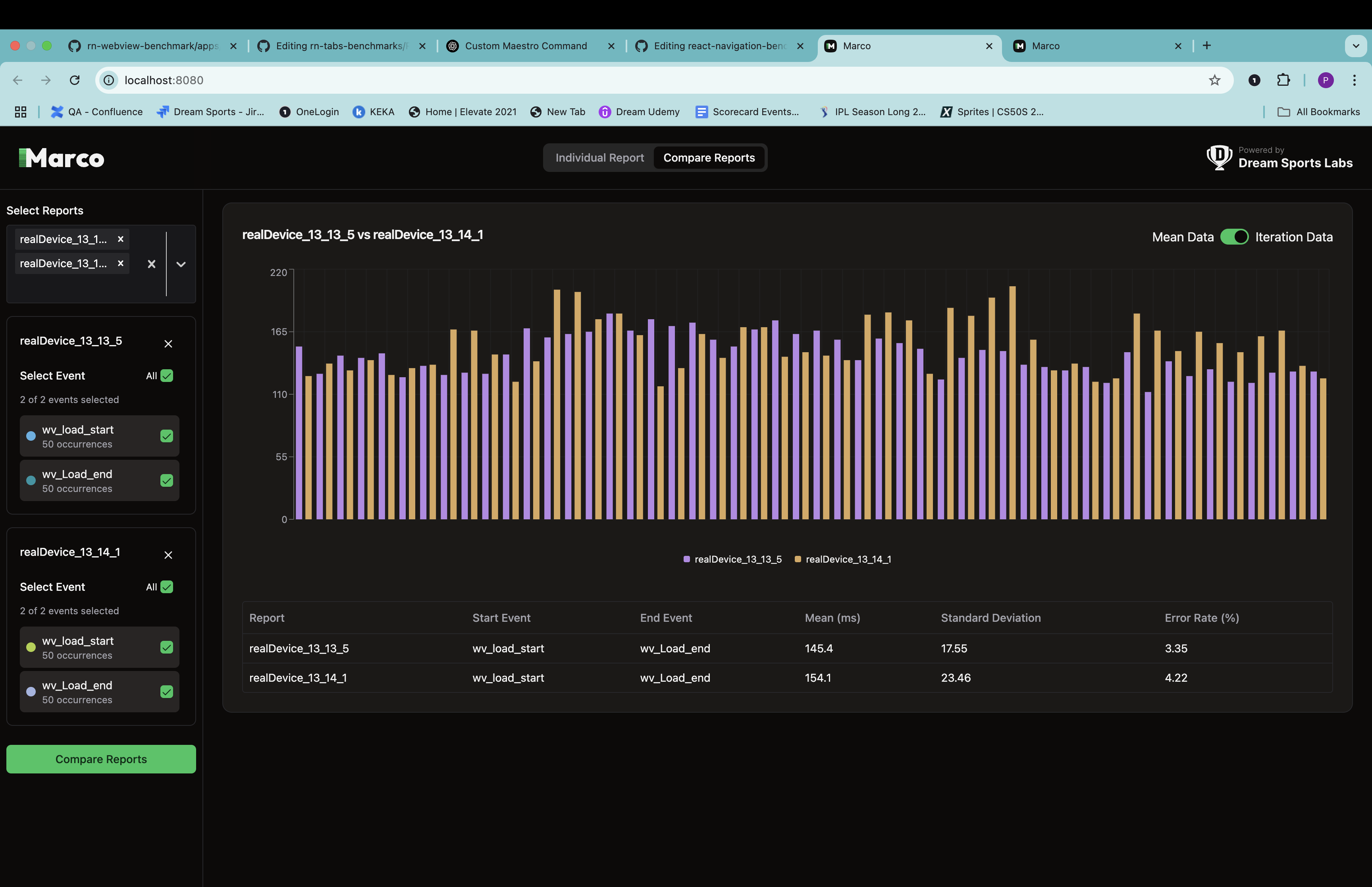

Marco reports for Vivo

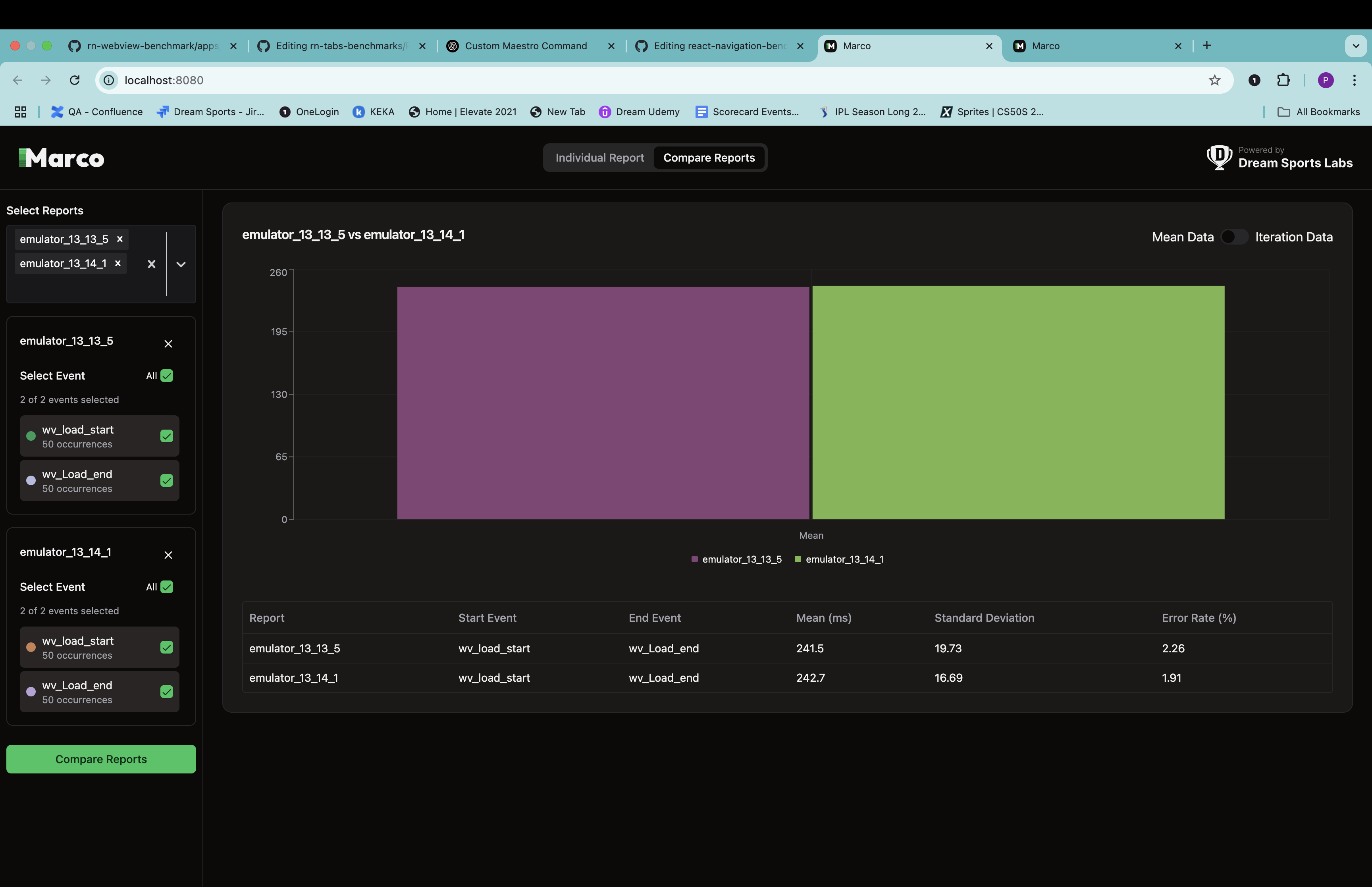

Click to android emulator Reports

click to view ios simulator reports

<img src="./assets/benchmarks/ios/ios_simulator.png"width="600"/>

📁 Project Structure

rn-webview-benchmark/
├── apps/                      # Individual RN apps per version
│   ├── webview_v_13_13_5/
│   └── webview_v_13_14_1/
├── marco-results/             # Collected benchmark outputs
│   ├── webview_v_13_13_5/
│   └── webview_v_13_14_1/
├── marco.config.js            # Marco config
├── package.json               # Dependencies (optional)
├── README.md

---

Setup Instructions

### Prerequisites 1. [React Native Environment Setup](https://reactnative.dev/docs/next/environment-setup) 2. [Maestro Setup](https://maestro.mobile.dev/) - To check if Maestro is installed on your system, run command: ```sh maestro --version ``` ### 1. Clone & Install ``` git clone https://github.com/dream-sports-labs/rn-webview-benchmark cd rn-webview-benchmark yarn install ``` --- ## 📦 Install Dependencies Per App Each app is a standalone React Native app. Run the following for each: ``` cd apps/webview_v_13_13_5 yarn install cd ios pod install cd ../.. ``` Repeat for other app folders. --- ## 🚀 Run the App ### iOS ``` cd apps/webview_v_13_13_5 yarn ios ``` ### Android ``` yarn android ``` --- ## 🧪 Run Benchmark Test Each app has its own test`maestro/AndroidScript/webview_test.yml`. ``` cd apps/webview_v_13_13_5 maestro test maestro/AndroidScript/webview_test.yml # for Android maestro test maestro/AndroidScript/webview_test.yml # for iOS ``` --- ## 📈 View Results ### Generate and Visualize Report A configuration file, `marco.config.js`, contains default paths to store reports. We can configure them based on our needs. ```sh yarn marco generate --platform android ``` ```sh yarn marco visualize --platform android ``` This will open up a dashboard where we can select events to analyse data. Move or copy them to the root directory `marco-results/webview_v_13_13_5/` folder for comparison. ---
