react-navigation-benchmark

This repository presents a benchmark comparison between two popular navigators from the React Navigation ecosystem:

@react-navigation/stack: A JavaScript-based stack navigator
@react-navigation/native-stack: A performant native stack navigator powered by react-native-screens

Using the Marco performance benchmarking tool, we’ve measured screen-to-screen navigation time to evaluate how each navigator performs under real-world conditions.

Benchmarking Metrics

Navigation Time: Navigation time is measured from the moment a button is pressed on Screen A (Marker_Start) to when Screen B is rendered (Marker_End).

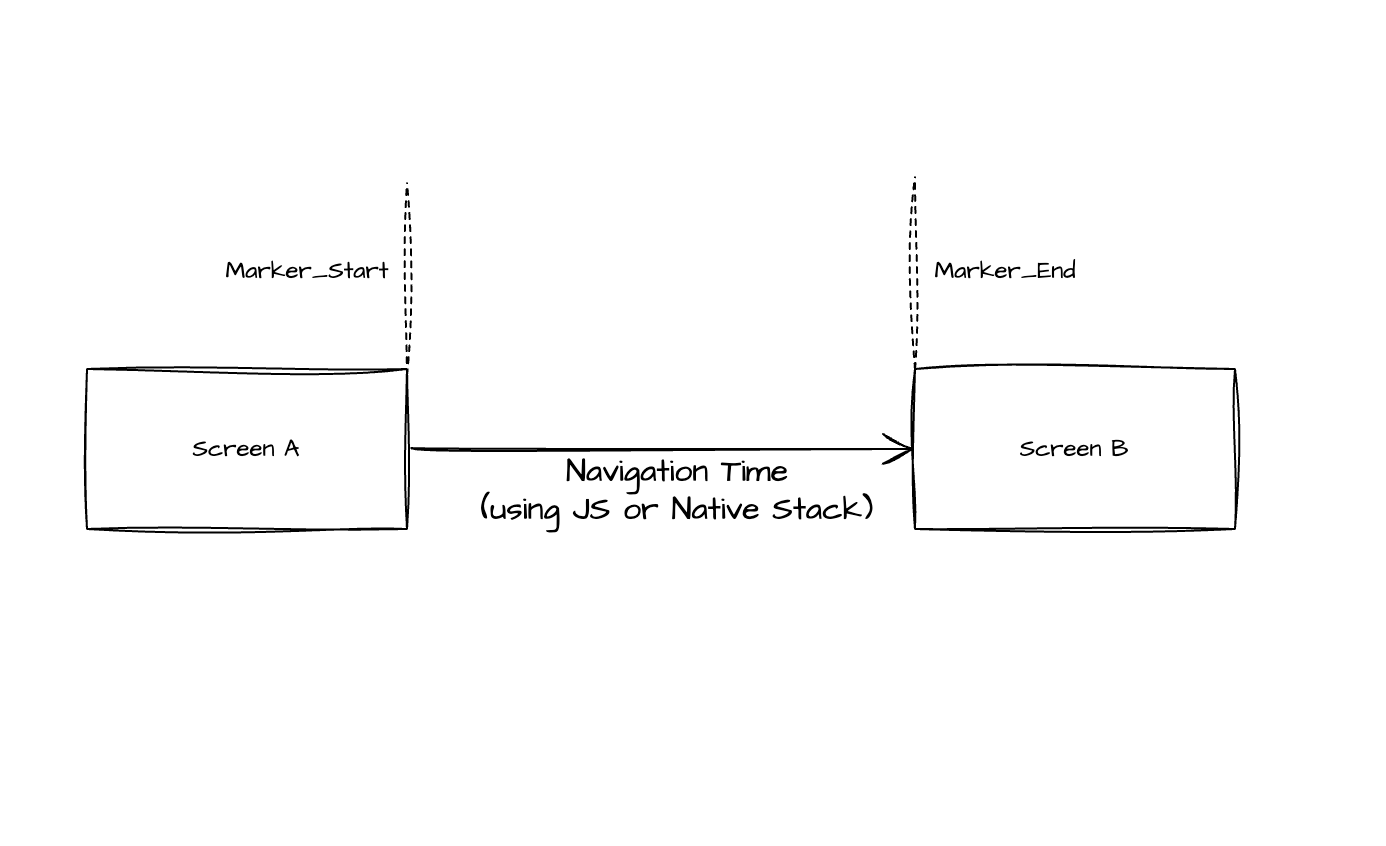

Diagram

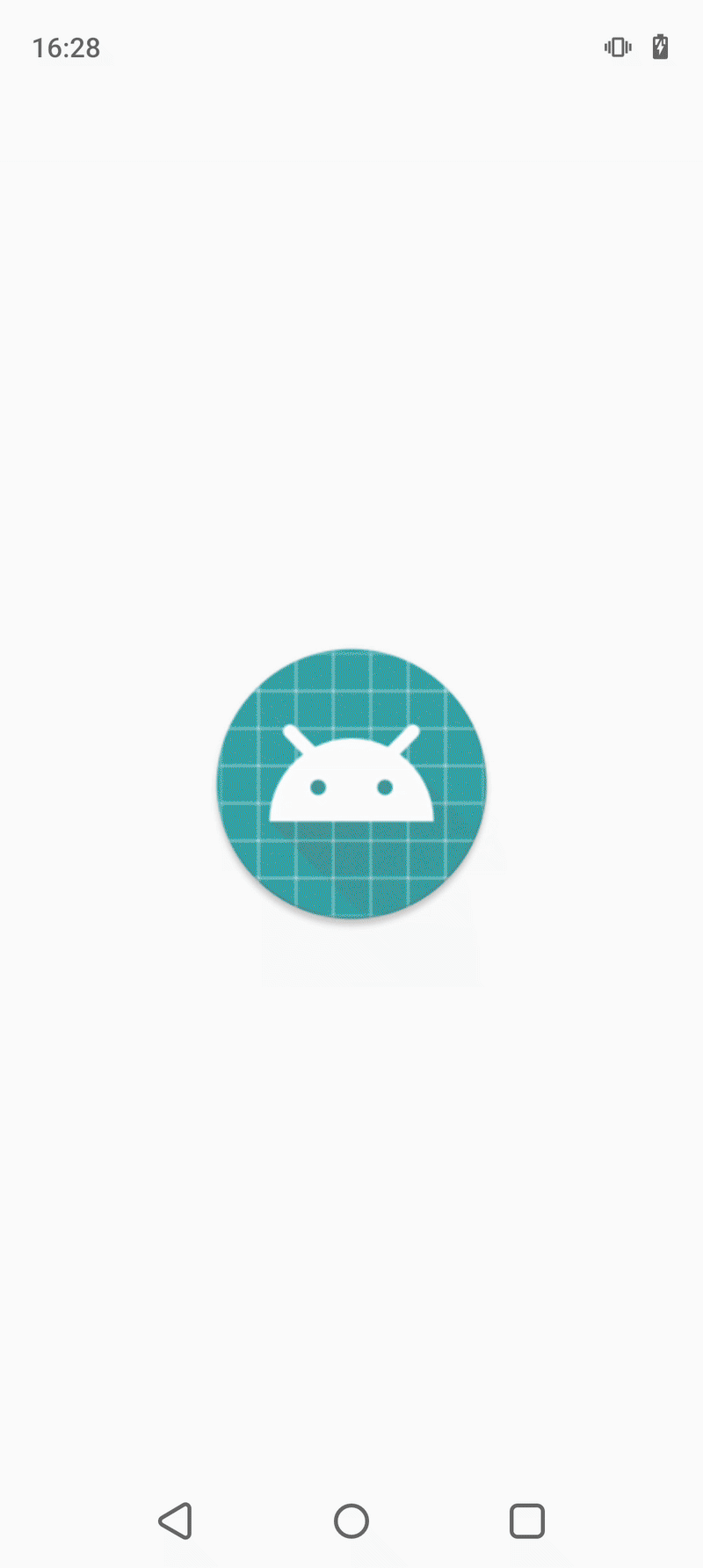

App Demo

Demo

Summary of Results

Android (RealDevice): Native Stack shows clear performance gains:

Simple: 73.1 ms → 43.7 ms (~40% faster)

Complex: 126.3 ms → 106.9 ms (~15% faster)
iOS (Simulator) : JS-based navigation is slightly faster, with performance nearly comparable to native.

Complex: 68.6 ms → 54.5 ms (~20.5% faster)

📂 Benchmark Scenarios

We tested navigation performance from Screen A to Screen B in two configurations:

✅ Simple Screen B

Contains only a text element.

✅ Complex Screen B

Includes multiple interactive UI elements:

Header with title and navigation type info
Dark mode toggle
Search bar and loading indicator
Scrollable FlatList with selectable items
Stats section for selected items
A “Go Back” button

Report Name	Description
`JS_Simple`	JS Stack (`@react-navigation/stack`) - Simple Screen
`Native_Simple`	Native Stack (`@react-navigation/native-stack`) - Simple Screen
`JS_Complex`	JS Stack - Complex Screen
`Native_Complex`	Native Stack - Complex Screen

What We Measured

Start Marker – Button onPress Event:

Navigation begins when the button is pressed on Screen A.
The timestamp is captured using a listener on the onPress event.
This timestamp is sent to PerformanceTracker.track() with a custom marker name (e.g., "Start_Navigation").

End Marker – Screen B Render Completion:

Navigation is considered complete when Screen B is fully rendered and visible.
We wrap Screen B with PerformanceTracker to capture the onDraw event, which marks the end of the transition.
This marks "End_Navigation" in the logs.

📌 These two markers allow Marco to calculate the time taken to complete the navigation between screens.

📍 How It’s Measured

We instrumented the navigation flow using Marco Markers at two key points:

Marker Name	Description
`Start_Navigation`	Captured when the navigation button is pressed on Screen A
`End_Navigation`	Captured when Screen B finishes rendering

🧾 Navigation Time = End_Navigation - Start_Navigation

📱 Device Details

These benchmarks were conducted on: ### 🤖 Android (Real Device) - **Device:** Realme C35 (Low-end) - **OS:** Android 13 - **RAM:** 4 GB ### 🍏 iOS (Simulator) - **Device:** iPhone 16 Pro - **OS Version:** iOS 18.3

Results

| Navigator | Android RealDevice (Simple) | Android RealDevice (Complex) | iOS Simulator (Complex) | | —————————————– |—————————–|——————–|————————-| | @react-navigation/stack (JS) | 73.1 ms | 126.3 ms | 54.5 ms | | @react-navigation/native-stack (Native) | 43.7 ms | 106.9 ms | 68.6 ms |

🔗 Live Benchmark Results: Click here

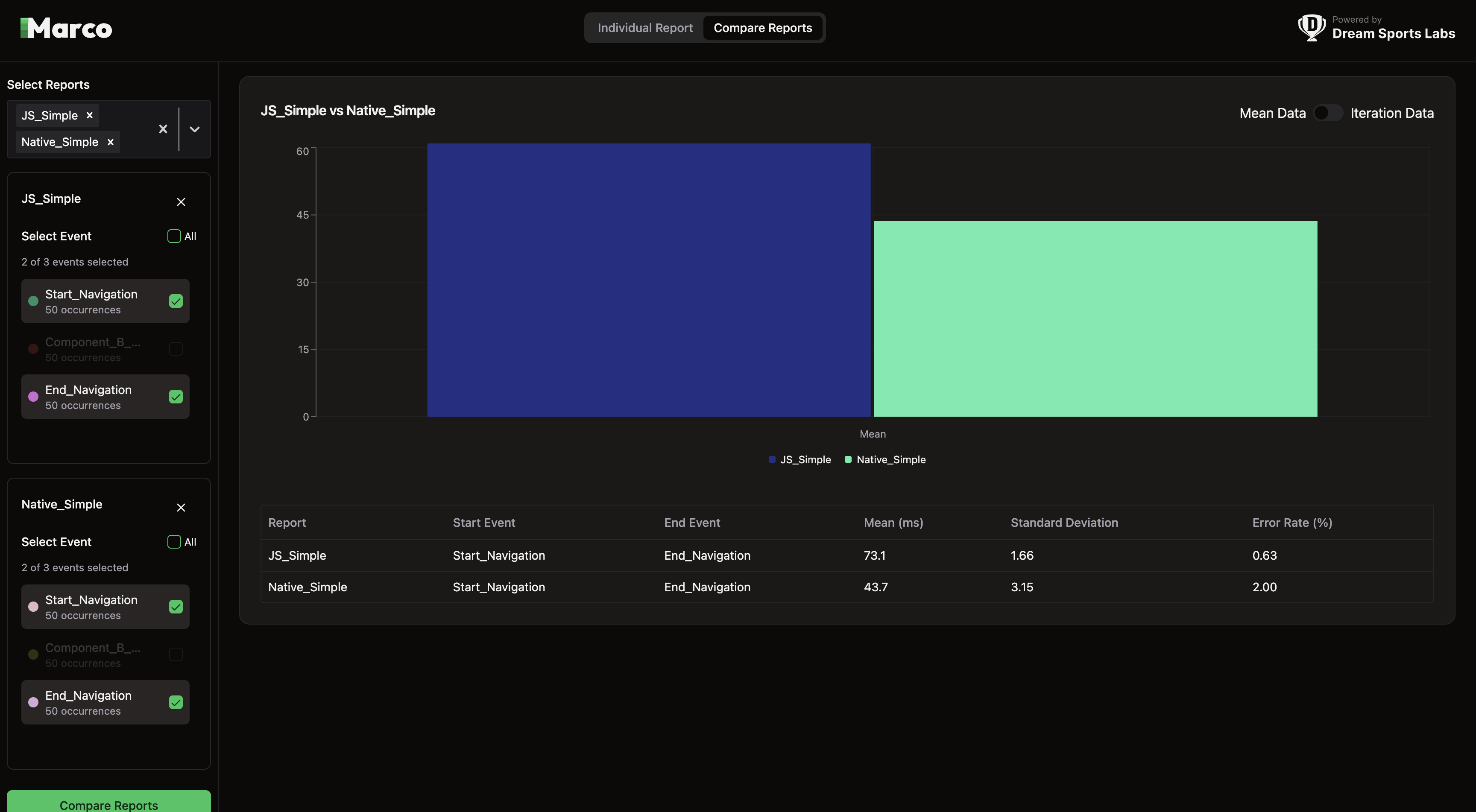

📊 Android Benchmark Results (Simple Screens)

Android Benchmark Simple

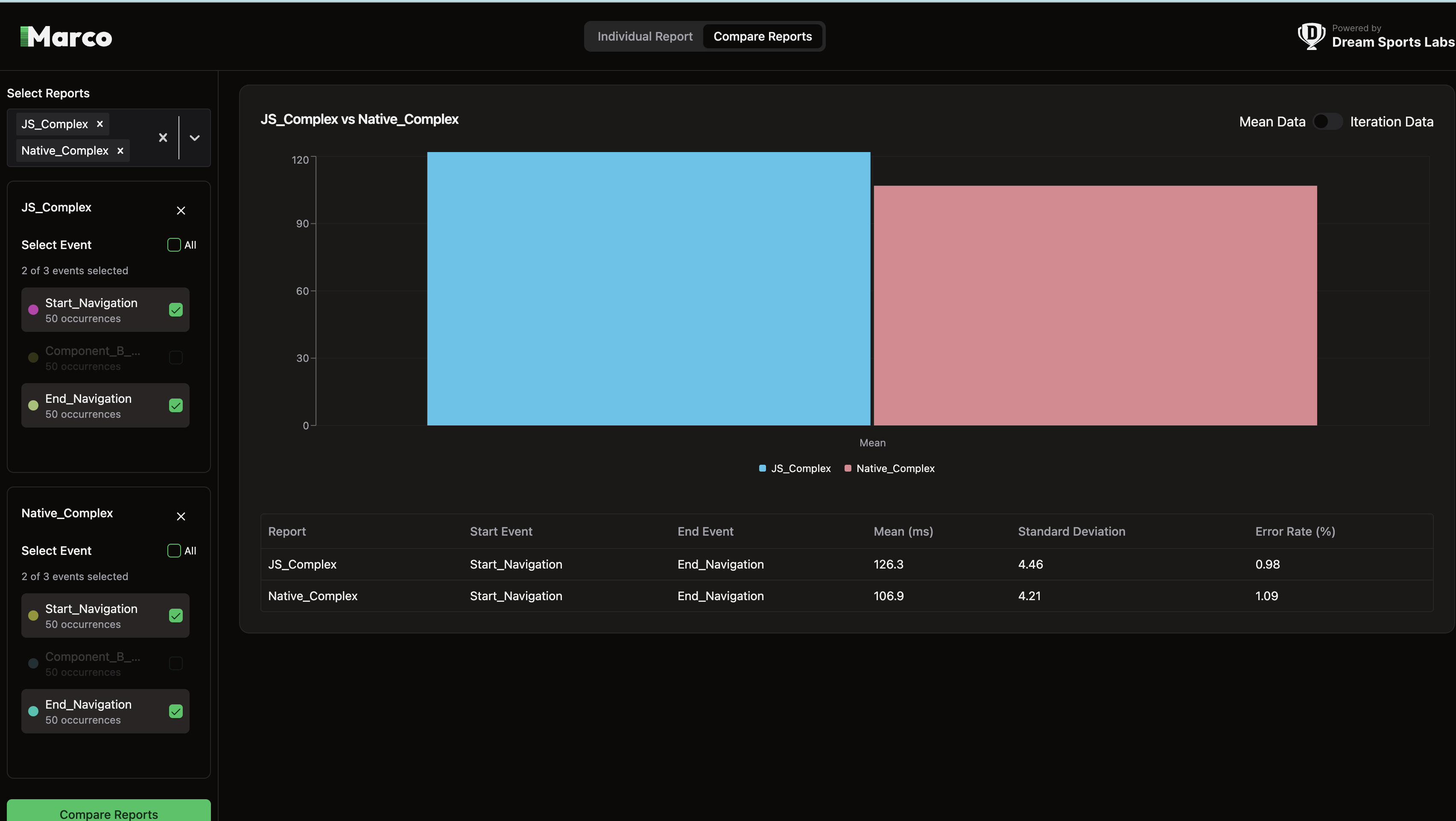

📊 Android Benchmark Results (Complex Screens)

Android Benchmark Complex

📦 Setup Instructions

> **Note**: Make sure you have completed the [Set Up Your Environment](https://reactnative.dev/docs/environment-setup) guide before proceeding. --- ### 🔧 Step 1: Clone Project and Install Dependencies ```sh git clone https://github.com/dream-sports-labs/react-navigation-benchmark.git cd react-navigation-benchmark yarn install ``` --- ### 🚀 Step 2: Start Metro Start the Metro bundler in one terminal: ```sh # Using npm npm start # OR using Yarn yarn start ``` --- ### 📱 Step 3: Build and Run the App Open a new terminal: #### ▶️ Android ```sh npm run android # OR yarn android ``` #### 🍏 iOS First install CocoaPods: ```sh bundle install cd ios && bundle exec pod install && cd .. ``` Then run: ```sh npm run ios # OR yarn ios ``` --- ### ✏️ Step 4: Modify and Refresh You can edit `App.tsx` and toggle the `useNativeNavigation` flag to switch between: - `@react-navigation/stack` (JS-based navigation) - `@react-navigation/native-stack` (Native stack navigation) This flag controls which navigator is rendered for benchmarking.

📌 Run Benchmark with Maestro

We are using the Marco tool to mark events and CLI tools provided by Marco to visualize the results. For more details refer: Marco Documentation We use Maestro for scripting navigation interactions.

Prerequisite

Ensure Maestro is installed and accessible:

maestro -v

1. Run Benchmark Test Scripts

Android

# JS Stack
maestro test .maestro/tests/AndroidScript/navigation-benchmark-js.yml

# Native Stack
maestro test .maestro/tests/AndroidScript/navigation-benchmark-native.yml

iOS

# JS Stack
maestro test .maestro/tests/iosScript/navigation-benchmark-js.yml

# Native Stack
maestro test .maestro/tests/iosScript/navigation-benchmark-native.yml

2. Generate and Visualize Reports

Generate Reports

yarn marco generate --platform android
yarn marco generate --platform ios

📁 Reports will be saved in:

marco-reports/android/

marco-reports/ios/

Visualize Reports

🛠️ Before visualization, ensure correct path and reportName are set in marco.config.js.
yarn marco visualize --platform android
yarn marco visualize --platform ios
